| TVS Apache RTR 160 4V Dual Channel ABS with USD and TFT General Features | |
|---|---|
| Engine Type | SI, 4 Stroke, Oil-Cooled, SOHC, Fuel Injection |
| Top Speed | - |
| Engine Capacity | - |
| Starting | - |
| Brakes | Double Disc |
| Gear Box | 5 Speed |
| Fuel Tank Capacity | 12 L |
| Tyre Type | Tubeless |
| TVS Apache RTR 160 4V Dual Channel ABS with USD and TFT Standard Features | |
|---|---|
| Brakes | Double Disc |
| Pass Switch | |
| Cooling System | - |
| ABS | Dual Channel |
| CBS | - |
| Ebs | - |
| Body Graphics | Y |
| Carry Hook | - |
| Shutter Lock | - |

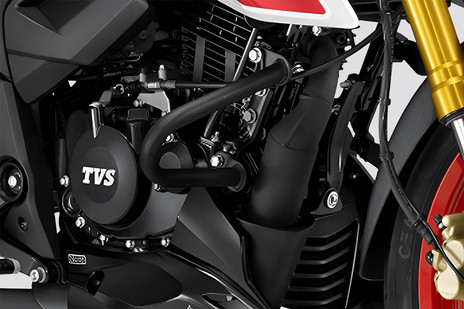

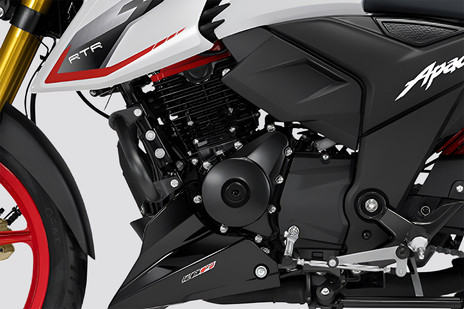

| TVS Apache RTR 160 4V Dual Channel ABS with USD and TFT Engine & performance | |
|---|---|
| Engine Type |
SI, 4 Stroke, Oil-Cooled, SOHC, Fuel Injection
|
| Displacement |
159.7
|
| Mileage |
-
|
| Bore |
62 mm
|
| Stroke |
52.9 mm
|
| Compression Ratio |
10.0:1
|
| Maximum Power |
17.55 PS @ 9250 rpm
|
| Maximum Torque |
14.73 Nm @ 7500 rpm
|
| Starting |
Self Start Only
|
| Maximum Speed |
-
|
| TVS Apache RTR 160 4V Dual Channel ABS with USD and TFT Transmission | |
|---|---|
| Gear Box |
5 Speed
|
| Clutch |
Wet, Multi Plate Clutch
|
| Transmission Type |
Manual
|

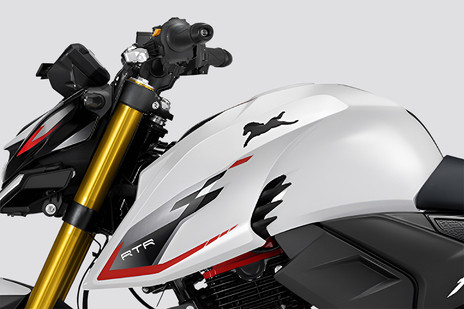

| TVS Apache RTR 160 4V Dual Channel ABS with USD and TFT Fuel | |
|---|---|
| Fuel Capacity |
12 L
|
| Supply System |
-
|
| Fuel Reserve |
-
|
| Fuel Gauge |
Digital
|
| Digital Fuel Gauge |
-
|
| TVS Apache RTR 160 4V Dual Channel ABS with USD and TFT Brake | |
|---|---|
| Brakes |
Double Disc
|
| Front Brake |
Disc
|
| Rear Brake |
Disc
|

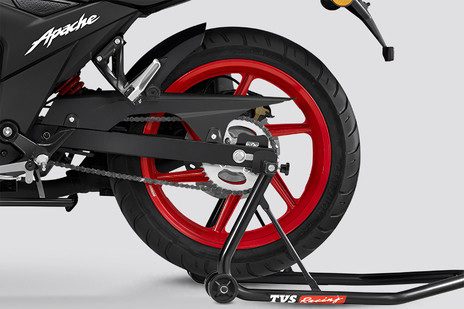

| TVS Apache RTR 160 4V Dual Channel ABS with USD and TFT Tyre Size | |
|---|---|
| Tyre Size |
Front :-90/90-17, Rear :-130/70-17 |
| Radial Tyres |
Yes
|
| TVS Apache RTR 160 4V Dual Channel ABS with USD and TFT Wheel Size | |
|---|---|
| Wheel Size |
Front :-431.8 mm, Rear :-431.8 mm |
| Wheel Base |
1357 mm
|
| TVS Apache RTR 160 4V Dual Channel ABS with USD and TFT Chassis and Suspension | |
|---|---|
| Bike Suspension |
-
|
| TVS Apache RTR 160 4V Dual Channel ABS with USD and TFT Frame | |
|---|---|
| Chassis/Frame |
-
|
| TVS Apache RTR 160 4V Dual Channel ABS with USD and TFT Electrical | |
|---|---|
| Ignition |
Electric Start
|
| Battery Type |
-
|
| Head Lamp |
-
|
| Tail Lamp |
-
|
| Turn Signal Lamp |
LED
|
| TVS Apache RTR 160 4V Dual Channel ABS with USD and TFT Exterior Dimensions | |
|---|---|
| Length | 2035 mm |
| Height | 1050 mm |
| Width | 819 mm |
| Ground_Clearance | 180 mm |
| Saddle_Height | 800 mm |
| Kerb Weight | 143 kg |
| Total Weight | - |
| Weight_Carrying_Capacity | - |
| Chassis/Frame | - |
| Wheel Base | 1357 mm |
