| TVS Ronin Top General Features | |
|---|---|
| Engine Type | Single Cylinder, 4 Stroke, 4 Valve, SOHC |
| Top Speed | - |
| Engine Capacity | - |
| Starting | - |
| Brakes | Double Disc |
| Gear Box | 5 Speed |
| Fuel Tank Capacity | 14 L |
| Tyre Type | Tubeless |
| TVS Ronin Top Standard Features | |
|---|---|
| Brakes | Double Disc |
| Pass Switch | - |
| Cooling System | - |
| ABS | Dual Channel |
| CBS | - |
| Ebs | - |
| Body Graphics | - |
| Carry Hook | - |
| Shutter Lock | - |

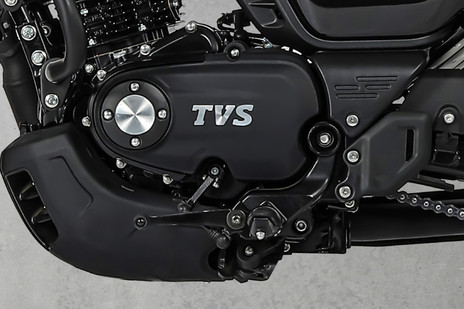

| TVS Ronin Top Engine & performance | |
|---|---|
| Engine Type |
Single Cylinder, 4 Stroke, 4 Valve, SOHC
|
| Displacement |
225.9
|
| Mileage |
-
|
| Bore |
66 mm
|
| Stroke |
66 mm
|
| Compression Ratio |
-
|
| Maximum Power |
20.4 PS @ 7750 rpm
|
| Maximum Torque |
19.93 Nm @ 3750 rpm
|
| Starting |
Self Start Only
|
| Maximum Speed |
-
|
| TVS Ronin Top Transmission | |
|---|---|
| Gear Box |
5 Speed
|

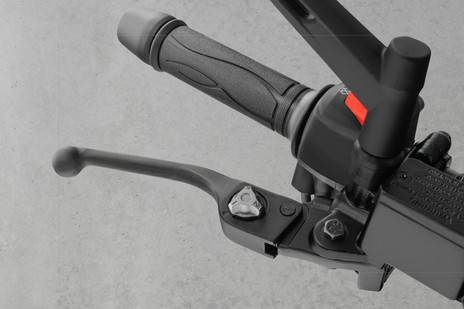

| Clutch |
Assist & Slipper Clutch
|
| Transmission Type |
Manual
|
| TVS Ronin Top Fuel | |
|---|---|
| Fuel Capacity |
14 L
|
| Supply System |
-
|
| Fuel Reserve |
-
|

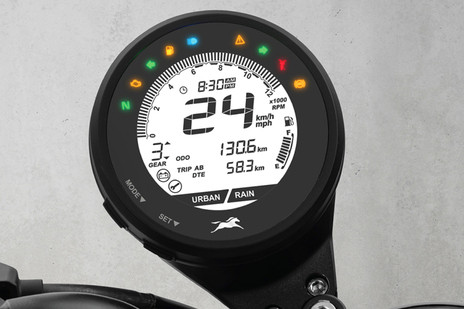

| Fuel Gauge |
Digital
|
| Digital Fuel Gauge |
-
|

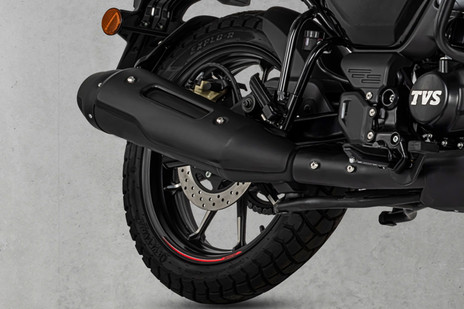

| TVS Ronin Top Brake | |
|---|---|
| Brakes |
Double Disc
|
| Front Brake |
Disc
|
| Rear Brake |
Disc
|
| TVS Ronin Top Tyre Size | |
|---|---|
| Tyre Size |
Front :-110/70-17, Rear :-130/70-17 |
| Radial Tyres |
-
|

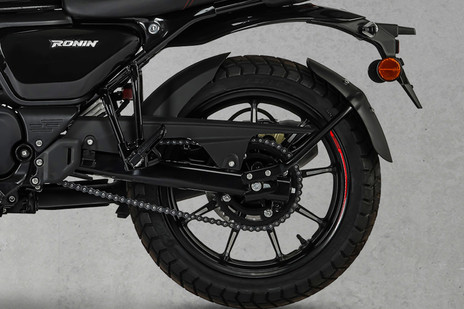

| TVS Ronin Top Wheel Size | |
|---|---|
| Wheel Size |
Front :-431.8 mm, Rear :-431.8 mm |
| Wheel Base |
1357 mm
|
| TVS Ronin Top Chassis and Suspension | |
|---|---|
| Bike Suspension |
-
|
| TVS Ronin Top Frame | |
|---|---|
| Chassis/Frame |
-
|
| TVS Ronin Top Electrical | |
|---|---|
| Ignition |
-
|
| Battery Type |
-
|

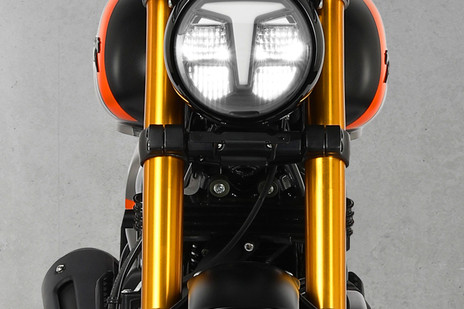

| Head Lamp |
-
|
| Tail Lamp |
-
|
| Turn Signal Lamp |
LED
|
| TVS Ronin Top Exterior Dimensions | |
|---|---|
| Length | 2040 mm |
| Height | 1170 mm |
| Width | 805 mm |
| Ground_Clearance | 181 mm |
| Saddle_Height | 795 mm |
| Kerb Weight | 160 kg |
| Total Weight | - |
| Weight_Carrying_Capacity | - |
| Chassis/Frame | - |
| Wheel Base | 1357 mm |
